AeroTech G78-7G 29mm x 124mm Single Use 1-Motor Pack - 77407

These high performance, composite propellant model rocket motors use the same family of solid propellant as NASAs Space Shuttle Boosters, military missiles, sounding rockets, and NASAs future SLS moon rocket. They utilize a patent pending high-strength polymer case and bulkhead, polymer nozzle and RCSs exclusive Mojave Green aerospace grade composite propellant formulation, which produces a brilliant green exhaust plume with a moderate amount of smoke. Mojave Green motors high density and specific impulse delivers a higher total impulse in each motor size than any other AeroTech propellant.

This AeroTech motor pack comes with 1 rocket motor and 1 FirstFire Jr. Initiator.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

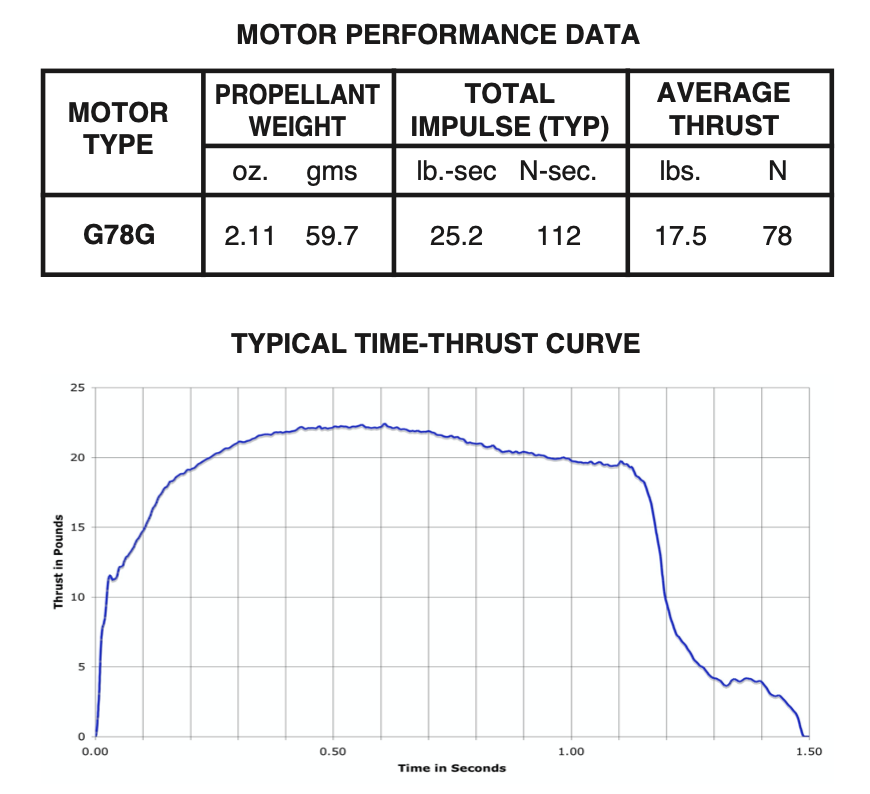

• Specifications

  Motor Diameter 1.125 inches (29mm)

  Casing Length 4.875 inches (124mm)

  Total Impulse 109.94 N-sec

  Average Thrust 79.9 newtons

  Peak Thrust 101.9 N-sec

  Thrust Duration 1.378 seconds

  Delay Time 7 seconds

  Propellant Weight 59.7 grams

  Motor Weight 125 grams

  Maximum Liftoff Weight Due to the variables involved, AeroTechQuest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
