AeroTech H210R-14A RMS-29/240 Reload Kit (1 Pack) - 0821014

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-29240 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a 29mm Forward Seal Disc during assembly. Important High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 18-38mm Delay Drilling Tool (RDDT), Not Included. The 18-38mm Delay Drilling Tool (RDDT) is available in the AeroTech Accessories section of this website.

This RMS motor reload utilizes RCSs exclusive Redline aerospace grade composite propellant formulation, which produces a visible scarlet flame. Redline motors burning rate lies midway between that of White Lightning and Blue Thunder. Photos dont do justice to the laser-beam intensity and color of Redline. you have to see it to appreciate it!

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire Initiators.

The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 1 High-Power certification through CAR, NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a drivers license) and proof of Level 1 certification is received.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

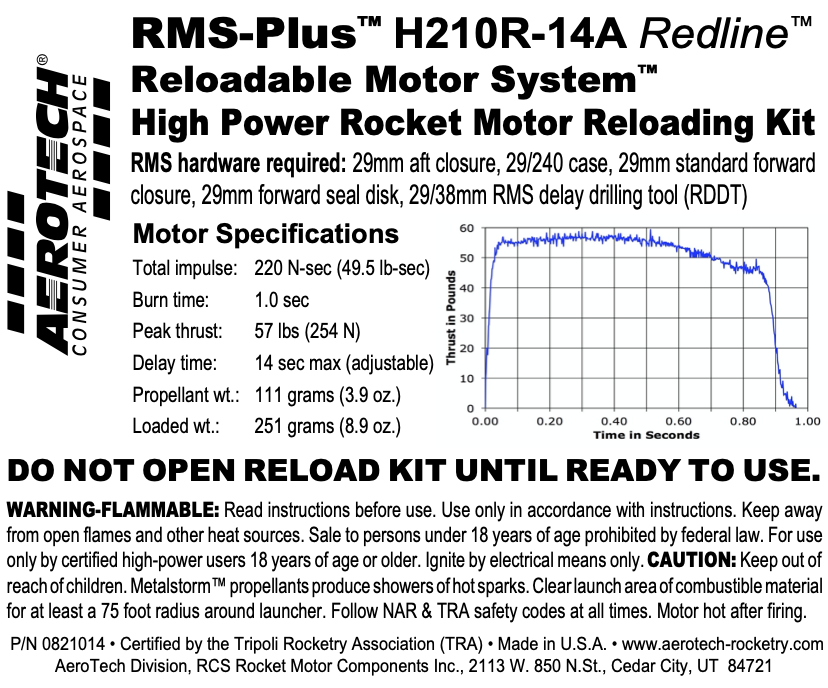

• Specifications

  Motor Diameter 1.125 inches (29mm)

  Casing Length 9.0 inches (228mm)

  Hardware Required RMS-29240

  Total Impulse 220 N-sec

  Average Thrust 215.4 newtons

  Peak Thrust 254 N-sec

  Thrust Duration 1.0 seconds

  Delay Time adjustable up to 14 seconds

  Propellant Weight 111 grams

  Motor Weight 251 grams

  Maximum Liftoff Weight Due to the variables involved, AeroTechQuest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
