AeroTech I1299N-P RMS-38/480 Reload Kit (1 Pack) - 09129P

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-38480 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a 38mm Forward Seal Disc during assembly. Important High Power RMS reload kits are not compatible with Mid Power RMS products.

The I1299N-P is a Plugged motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system. This motor requires a Plugged Forward Closure.

This RMS motor reload utilizes RCSs exclusive Warp-9 aerospace grade composite propellant formulation, which produces a prominent yellow-orange flame studded with mach diamonds. Warp-9 is AeroTechs fastest burning propellant. Originally developed for Orbitals Pegasus fin motors, Warp-9 is perfect when you need the highest thrust possible from a given motor size.

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire Initiators.

Requires HAZMAT shipping.

The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 2 High-Power certification through CAR, NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a drivers license) and proof of Level 2 certification is received.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

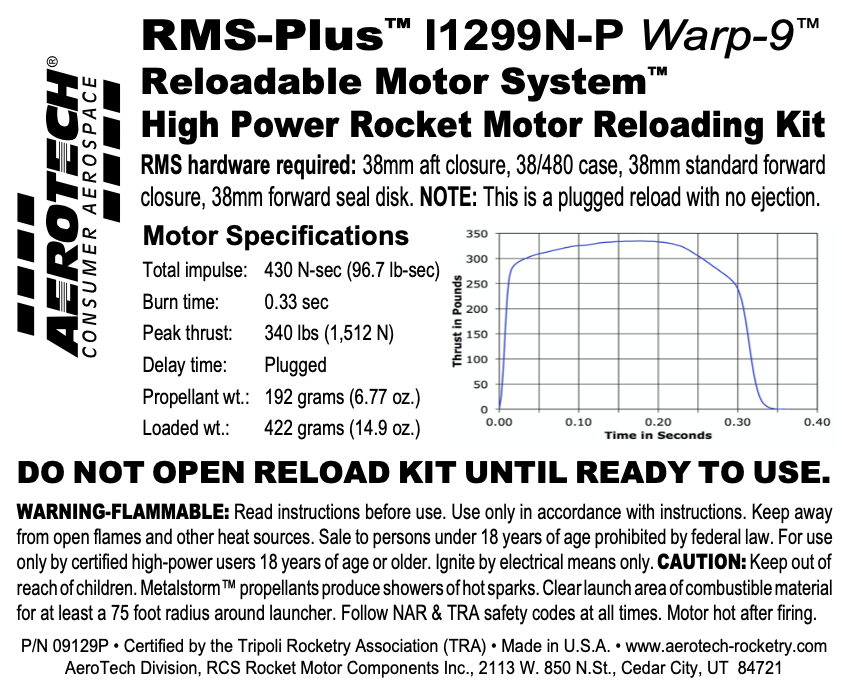

• Specifications

  Motor Diameter 1.5 inches (38mm)

  Casing Length 9.13 inches (232mm)

  Hardware Required RMS-38480

  Total Impulse 430 N-sec

  Average Thrust 1335.0 newtons

  Peak Thrust 1512 N-sec

  Thrust Duration 0.33 seconds

  Delay Time Plugged

  Propellant Weight 192 grams

  Motor Weight 422 grams

  Maximum Liftoff Weight Due to the variables involved, AeroTechQuest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
