AeroTech J270W-14A 38mm x 356mm Single Use DMS 1-Motor Kit - 102714

The AeroTech Disposable Motor System DMS is a single-use motor in kit form that is assembled by the user. All of the Aerotech DMS motors use all-disposable components. The nozzle and propellant are already installed. You will need to set the desired delay time using the Universal Delay Drilling Tool (UDDT), Not Included, and then pour in the ejection charge. The Universal Delay Drilling Tool (UDDT) is required to adjust to a shorter time delay on all DMS rocket motors and is available in the AeroTech Accessories section of this website.

DMS motors feature a filament-wound fiberglass casing, a glass-reinforced composite phenolic nozzle, a molded plastic bulkhead and RCSs exclusive White Lightning aerospace grade composite propellant formulation, which produces a brilliant white flame with lots of dense white smoke and a throaty roar at lift-off.

This AeroTech motor pack comes with 1 rocket motor and 1 FirstFire Initiator.

Requires HAZMAT shipping.

The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 3 High-Power certification through CAR to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a drivers license) and proof of Level 3 certification is received.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

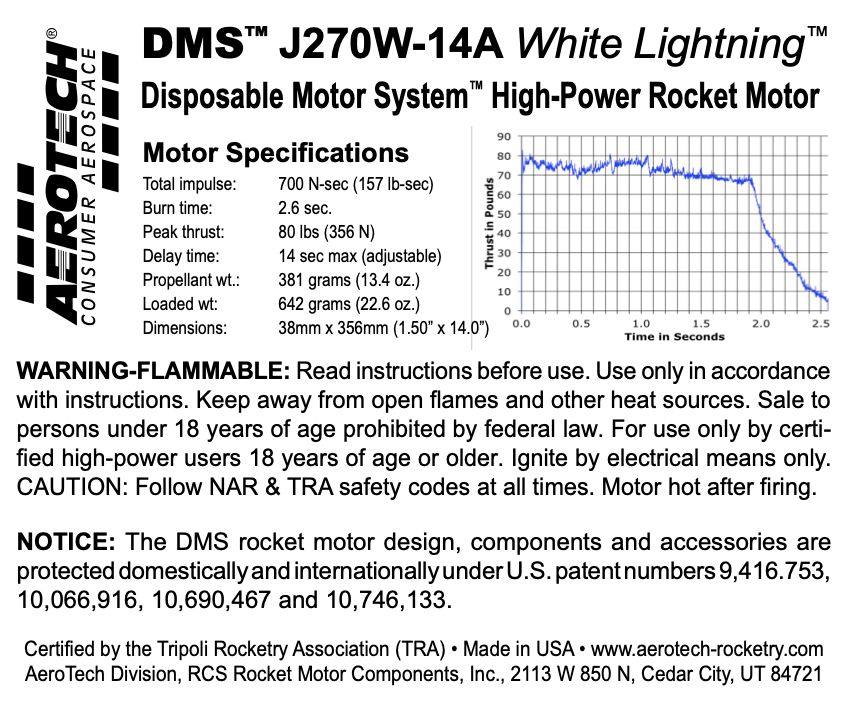

• Specifications

  Motor Diameter 1.5 inches (38mm)

  Casing Length 14.03 inches (356mm)

  Total Impulse 703 N-sec

  Average Thrust 270 newtons

  Peak Thrust 356 N-sec

  Thrust Duration 2.6 seconds

  Delay Time adjustable up to 14 seconds

  Propellant Weight 381 grams

  Motor Weight 642 grams

  Maximum Liftoff Weight Due to the variables involved, AeroTechQuest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
