AeroTech K540M-14A RMS-54/1706 Reload Kit (1 Pack) - 115414

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-541706 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a forward seal disc (54FSD) during assembly. Important High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 54mm Delay Drilling Tool (54RDDT), Not Included. The 54mm Delay Drilling Tool (54RDDT) is available in the AeroTech Accessories section of this website.

This RMS motor reload utilizes RCSs exclusive Metalstorm aerospace grade composite propellant formulation. Metalstorm is a sparky propellant, lights easily and produces a large brilliant white exhaust plume, a long yellow-orange dense spark trail, and plentiful white sparks that fan out in flight. As with all rocket motors using spark-generating propellants, special precautions must be taken to avoid fires around the launch pad by clearing the immediate area of all combustible materials in accordance with applicable fire and safety codes.

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire Initiators.

Requires HAZMAT shipping.

The sale of this high power motor to persons under 18 years of age is currently prohibited by federal law. This is a High-Power motor requiring Level 3 High-Power certification through  CAR, NAR or Tripoli to purchase. Orders containing this item will not be shipped until proof of age (such as a copy of a drivers license) and proof of Level 3 certification is received.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

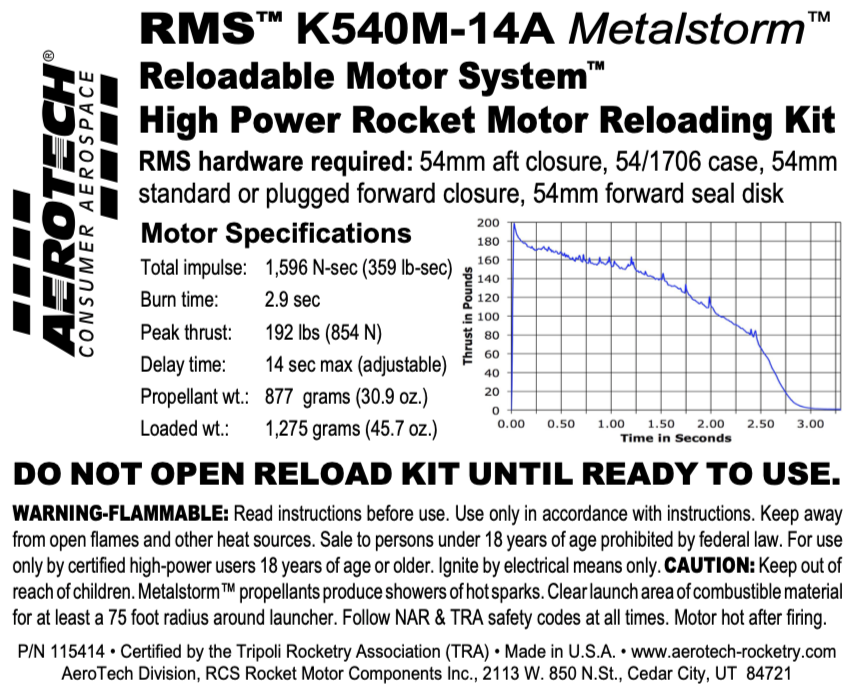

• Specifications

  Motor Diameter 2.125 inches (54mm)

  Casing Length 17.20 inches (437mm)

  Hardware Required RMS-541706

  Total Impulse 1596 N-sec

  Average Thrust 557.4 newtons

  Peak Thrust 854 N-sec

  Thrust Duration 2.9 seconds

  Delay Time adjustable up to 14 seconds

  Propellant Weight 877 grams

  Motor Weight 1275 grams

  Maximum Liftoff Weight Due to the variables involved, AeroTechQuest currently does not list or post recommended maximum lift-off weights for their mid-power and high-power rocket motors. Instead, we recommend utilizing either the RockSim software available at www.apogeerockets.com or OpenRocket Simulator available at www.openrocket.info.
