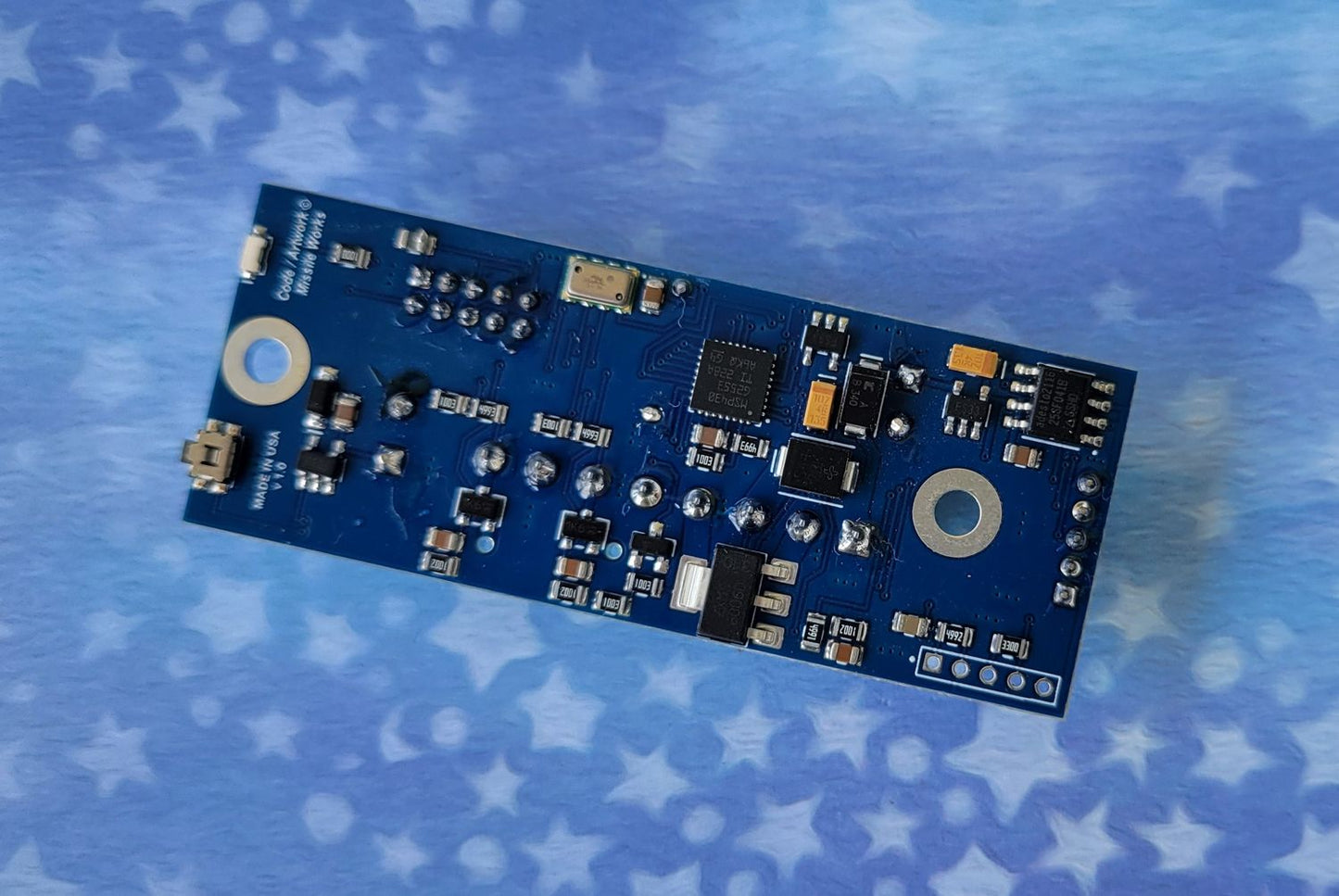

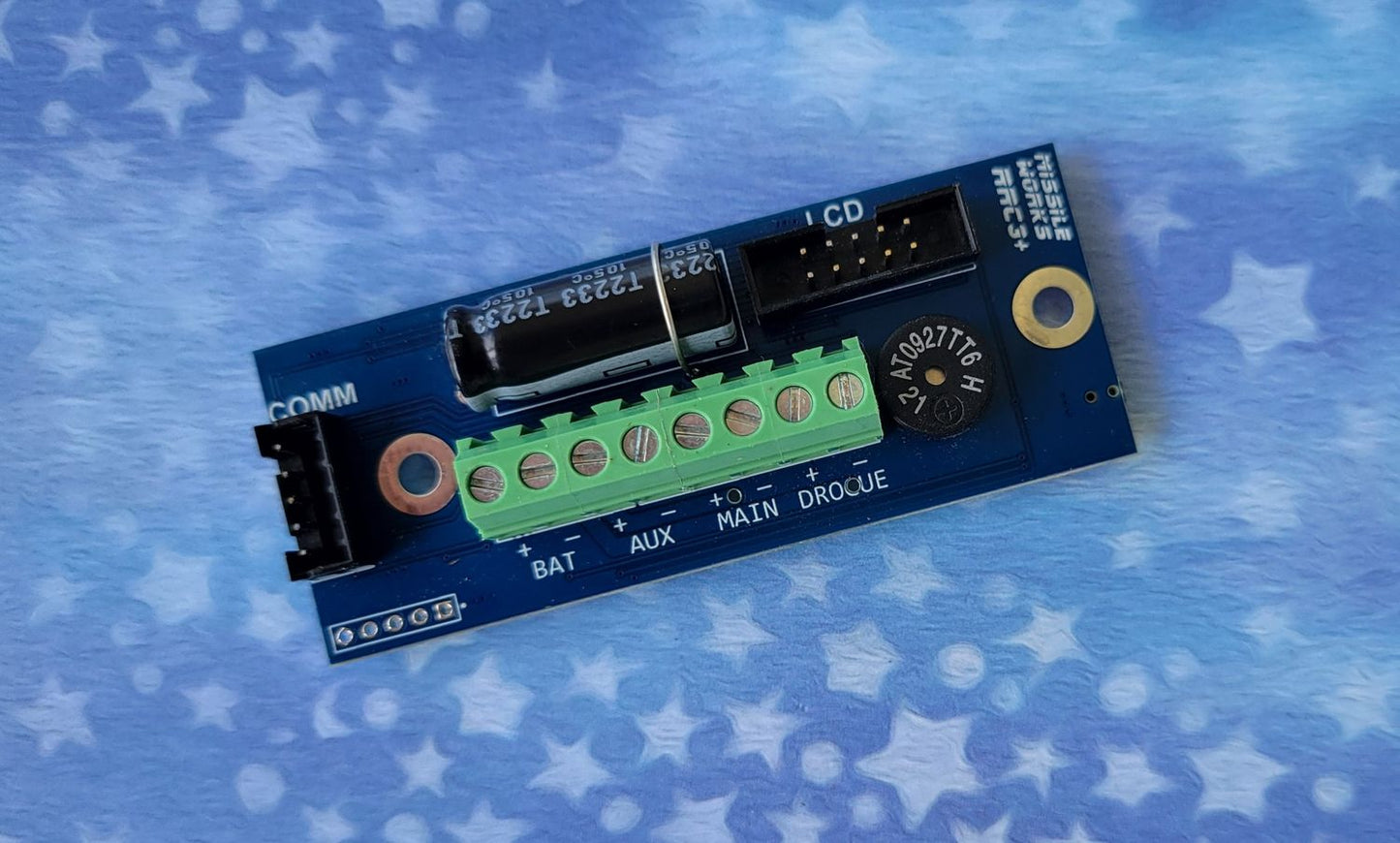

MISSILEWORKS 2024 RRC3+ ALTIMETER MODEL

The RRC3+ Altimeter is our newly redesigned version of the RRC3 "Classic" that's been in service for the past decade. It's loaded with upgraded features and also sports a smaller, more compact form factor:

• Measures only 2.56" (65mm) x 1" (25.5mm) and mounts identically to the RRC2+ and RRC2L
• Impervious to Lithium Battery discharge current using upgraded "IntelliFET" output events
• Upgraded 4A capable "IntelliFET" Aux output for enhanced staging or cluster ignitions
• Supports all m3 Components (LCD Terminal, UDC interface, Bluetooth) and RTx Tethering
• Still 9V Alkaline battery capable and button programmable

This updated RRC3+ redesign is a barometric dual-deploy altimeter providing the features of high-end units at the cost of altimeters with a more modest feature set. In addition to basic dual-deploy capability, the RRC3+ is a multi-flight recording unit, allowing you to fly all day, without the need to stop and download data in between flights. The RRC3+ also provides a third, highly flexible and programmable 'Auxiliary' output which can provide staging, airstarts, backup events, and a host of other applications.

The RRC3+ can also support real-time data streaming capabilities in flight for telemetry or for interface with other custom control systems. Despite this unrivaled suite of intrinsic capabilities and expandability, the RRC3+ still maintains its simple "buy it and fly it" operations.
